Double A-arm CV Rearend Unit
« on: December 15, 2008, 11:04:49 PM »

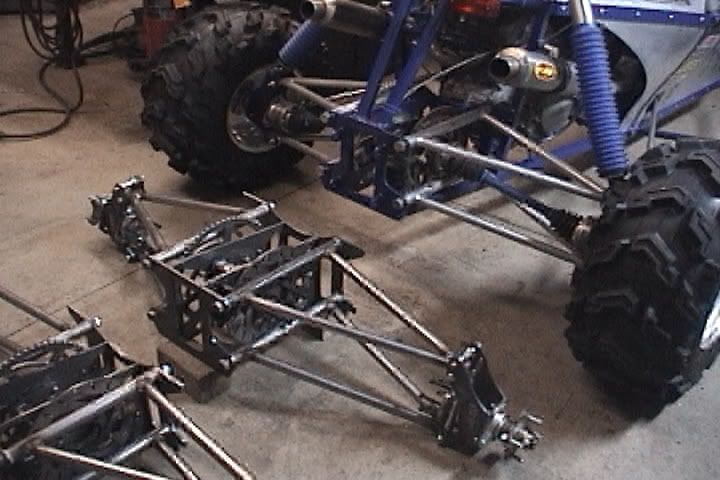

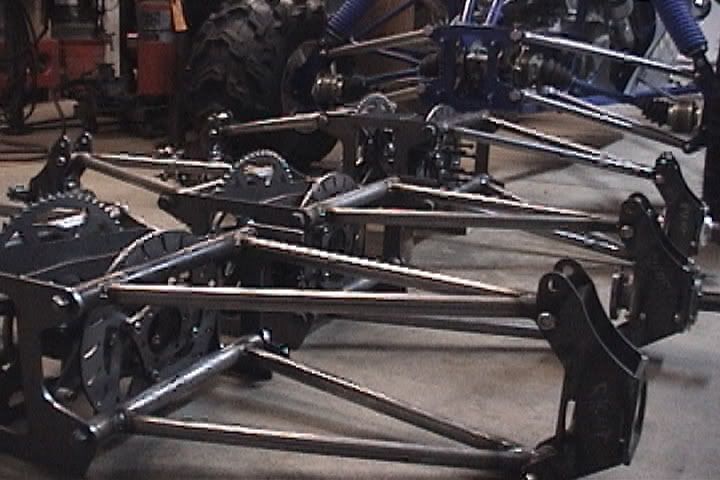

This kit is complete from wheel hub to wheel hub. All you need to do is weld the center carier into your chassis. The available traveil is aproximatly 14". Wheel hub size is made to your specifications. This unit will handle alot af abuse and power as I have tested them personally and have sold them throughout the US with zero problems. This unit shares the same overall dimentions of the Edge standard double A-arm rearend unit.

Kit comes partially assembled with the following...

Sprocket, center shaft & bearings, CV axles (type 4), Brake rotor, caliper (dual piston floating), A-arms, pivot pins, uprights, stub axles & bearings, wheel hubs, center carrier, and all hardware.

I can break it up or build to other specifications upon request. Thanks for looking.




more pics comming soon.
Logged

Wyattboche

  • Hero Member
  • ****
  • Offline Offline
  • Posts: 1073
Re: Double A-arm CV Rearend Unit
« Reply #1 on: February 05, 2009, 09:09:29 PM »
In a barracuda would this be better than the PIRCV?
Logged

Doug Heim

  • Bad @$$ Buggy Builder & Parts Supplier
  • Moderator
  • *****
  • Offline Offline
  • Posts: 2733
    • WWW
Re: Double A-arm CV Rearend Unit
« Reply #2 on: February 05, 2009, 10:23:33 PM »
The PIRCV in my opinion is better but heavier and you have to move the engine further to one side. Its also More expensive. I sell the PIRCV rearend from any little part to complete units. The PIRCV units I sell have some mods done to improve strength and clearance as well as long term use. Ill be creating a section for these when I am more prepared. I'm currently building 10 units and when I am close to finishing Ill post up an ad.
Logged

Wyattboche

  • Hero Member
  • ****
  • Offline Offline
  • Posts: 1073
Re: Double A-arm CV Rearend Unit
« Reply #3 on: February 06, 2009, 03:57:14 PM »
Roughly what will you be asking for a unit? Also what is included?
Logged

Doug Heim

  • Bad @$$ Buggy Builder & Parts Supplier
  • Moderator
  • *****
  • Offline Offline
  • Posts: 2733
    • WWW
Re: Double A-arm CV Rearend Unit
« Reply #4 on: February 06, 2009, 04:14:16 PM »
Looking like about $2800 and it will include EVERYTHING! It will also include the improvements I have made to personalize it to my likings. There are some small issues with the PIRCV as it is built to plans.
Logged

Wyattboche

  • Hero Member
  • ****
  • Offline Offline
  • Posts: 1073
Re: Double A-arm CV Rearend Unit
« Reply #5 on: February 08, 2009, 10:35:48 PM »
Looking like about $2800 and it will include EVERYTHING! It will also include the improvements I have made to personalize it to my likings. There are some small issues with the PIRCV as it is built to plans.
Like what?
Logged

Doug Heim

  • Bad @$$ Buggy Builder & Parts Supplier
  • Moderator
  • *****
  • Offline Offline
  • Posts: 2733
    • WWW
Re: Double A-arm CV Rearend Unit
« Reply #6 on: February 08, 2009, 10:51:28 PM »
CV clearance, Chain adjustment, caliper clearance, and I am now using crush sleeves in the pivots where Edge does not. Ill be going more into detail in the future. Even my hardware is better IMO.
Logged

BLUERACER

  • Guest
Re: Double A-arm CV Rearend Unit
« Reply #7 on: March 14, 2009, 06:39:56 PM »
To all fellow buggy builders I just received one of these rear end housing and it's awsome. It comes with everything, you put it together weld it in place. Thanks Doug nice work.
Logged

bloody knuckles

  • Guest
Re: Double A-arm CV Rearend Unit
« Reply #8 on: March 29, 2009, 01:42:04 AM »
hey doug. you did not post a price. How much?
Logged

Reidy02

  • VIP
  • *
  • What goes around comes around!

  • Offline Offline
  • Posts: 1534
  • Location: Australia the Great land Downunder!
Re: Double A-arm CV Rearend Unit
« Reply #9 on: March 29, 2009, 02:43:17 AM »
Looking like about $2800 and it will include EVERYTHING! It will also include the improvements I have made to personalize it to my likings. There are some small issues with the PIRCV as it is built to plans.
it was just up the page a bit!!
Logged

VTR 1000 CUDA on the way.. What goes around comes around!!

Doug Heim

  • Bad @$$ Buggy Builder & Parts Supplier
  • Moderator
  • *****
  • Offline Offline
  • Posts: 2733
    • WWW
Re: Double A-arm CV Rearend Unit
« Reply #10 on: March 29, 2009, 08:02:42 AM »
That was for the PIRCV Units.

The Double A-arm CV unit (pictured) for the Piranha has a new price of $1999 with everything needed.

4 weeks for delivery as Im awating lasers that are out a couple weeks. Units are fully welded and fully assembled becides installing the axles.
Logged

Wyattboche

  • Hero Member
  • ****
  • Offline Offline
  • Posts: 1073
Re: Double A-arm CV Rearend Unit
« Reply #11 on: June 02, 2009, 11:20:12 PM »
That was for the PIRCV Units.

The Double A-arm CV unit (pictured) for the Piranha has a new price of $1999 with everything needed.

4 weeks for delivery as Im awating lasers that are out a couple weeks. Units are fully welded and fully assembled becides installing the axles.
How much for this unit WITHOUT center section?? I just want the center with the a-arms and the uprights.Going with a diffrentical dont need to be chain driven.
Logged

Doug Heim

  • Bad @$$ Buggy Builder & Parts Supplier
  • Moderator
  • *****
  • Offline Offline
  • Posts: 2733
    • WWW
Re: Double A-arm CV Rearend Unit
« Reply #12 on: June 03, 2009, 05:44:17 AM »
so no axles or shaft work? No hubs, sprocket, rotor or caliper.

without the center section but you want the center?

Sorry bud you lost me... PM me
Logged

Voodoochikin04

  • Vip Eye candy Supplier!!
  • VIP
  • *
  • Offline Offline
  • Posts: 1716
  • Location: Norfolk ,NE
Re: Double A-arm CV Rearend Unit
« Reply #13 on: June 03, 2009, 06:47:54 AM »
i think he wants it all except, center shaft, sprocket, rotor, caliper..  just the center housing, axles, arms, hubs and uprights... so instead of chain he would stick a differential in it.
Logged

"it's only when you have lost everything, that your free to do anything"

Doug Heim

  • Bad @$$ Buggy Builder & Parts Supplier
  • Moderator
  • *****
  • Offline Offline
  • Posts: 2733
    • WWW
Re: Double A-arm CV Rearend Unit
« Reply #14 on: June 03, 2009, 01:44:07 PM »
I would just like to be sure. If he is using a diff he may be able to do without the center housing and make up his own A-arm mounts. thats all the center section would be of use to him. Just trying to get him what he needs at a cost he can afford. Thats how I roll!  8) 8)
